Model SR07 – Frame I
Latch Needle 6 Color Striper Rib Machine
Retaining many of the key features of the Model R, the Model SR also allows for ribbed striping of up to 6 colors and/or knitted materials. With advanced electronics, the Model SR allows you to control both striping and contouring to meet your needs. Available in a 7” diameter, the Model SR is used extensively for the production of hockey socks, knit caps, and protective clothing hybrids. Lycra feed capability available for improved product quality.
- Hockey Socks
- Striped Hats
| Machine Specifications | |
|---|---|
| Height | 90 in. (229cm) to top of Side Creel Tubes |
| Width – Outside Diameter | 36 in. (91cm) |
| At Floor | 22 in. x 22. (56cm x 56cm) |
| Weight | 950 pounds (431kg) to 1050 pounds (476.27kg) |
| Horsepower | 1.0 |
| Drive System | Tompkins Electronic AC Motor Controller. |
| Standard Electrics | All modes 220 volts, single or 3 phase, 50/60 hertz power (voltage range 183-253). If other operating voltage is required, please contact Tompkins USA. |
| Needle Wire Gauges | 8, 12, 18 |
| Track | Singe (Cylinder and Dial) |
| Manual Operation | Ratchet handle for manual adjustment |
| Stop Motion System | Upper and Lower Stopmotions for over-feed and yarn run-out detection. |
| Fabric Collection | Two roll balanced takedown system to reduce vibration at high speeds with precision fabric rollup. |
| Safety | Design to meet current safety standards. |
| Machine Speeds | Three selectable and programmable machine speeds – Hi, Lo, and Jog. Bypass of stop motion in Jog speed. |
| Needle Detectors | Standard on all models. |
| Lubrication System | High capacity Tompkins Model X-6950 Mini-projectile lubricator with auto lubrication to cylinder, dial, dial shaft and dial gears. |
| Safety Roll Shutoff | Standard on all models. |
| Preset Counter | Revolution of piece counter. |
| Operator Terminal | Storage of multiple programs. |
| Side Creel | Unlimited yarn capacity. Complete with hard tubes, support brackets and all hardware. Setup for double coning. Ceramic guides at corners. |
| Diameter | Model No. | No. Feeds | RPM* | Cut (Needles/Inch) |
|---|---|---|---|---|
| 7 inch (17.8cm) | SR07026C | 2 | 143 | 2-8 |
*Machine RPM is dependent on yarn quality and fabric configuration.
- Preset revolution counter
- Lycra feed system
- Omnidirectional warning light system – 2 color
- Lock-out switch – manual motor starting switch setup for manual lockout
- Standard range of voltages available (380, 416, 480 and 550)
- Upper level multi-direction lint single fan link blowing system
- Multi-speed positive storage feeding system

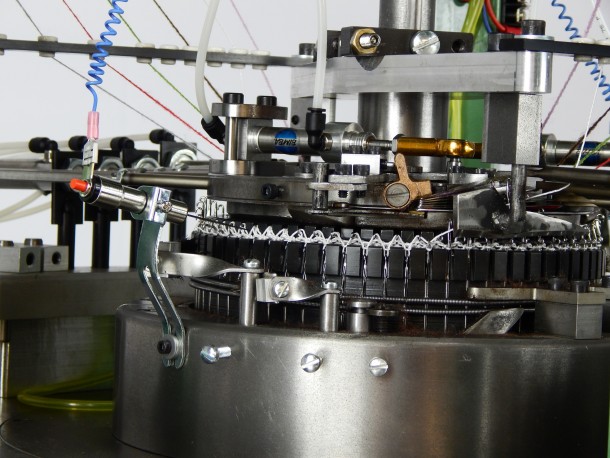

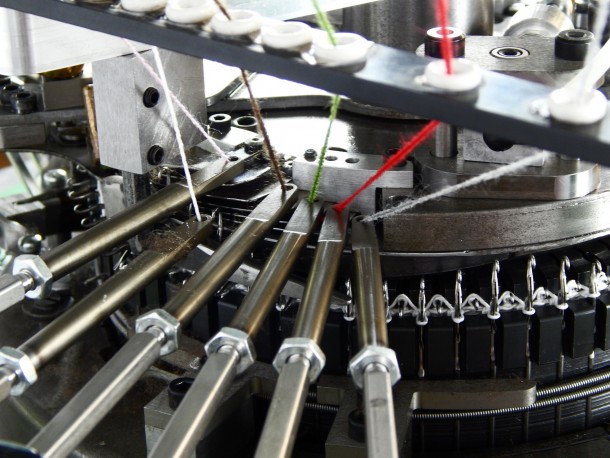

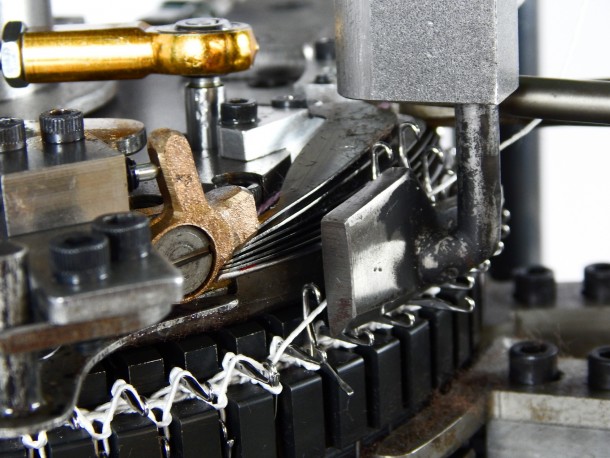

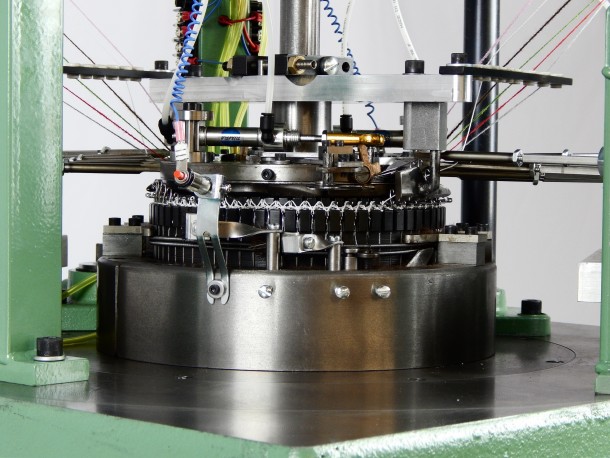

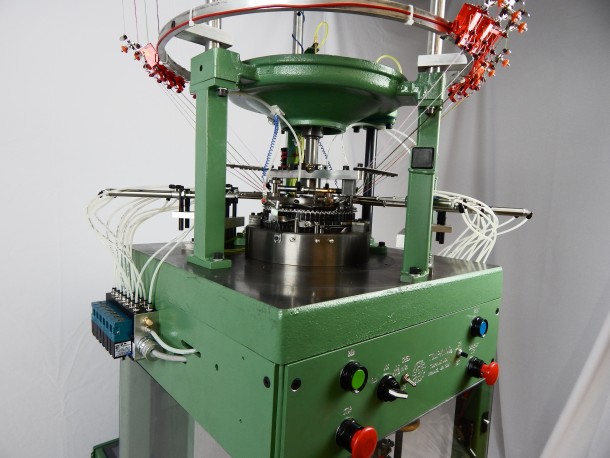

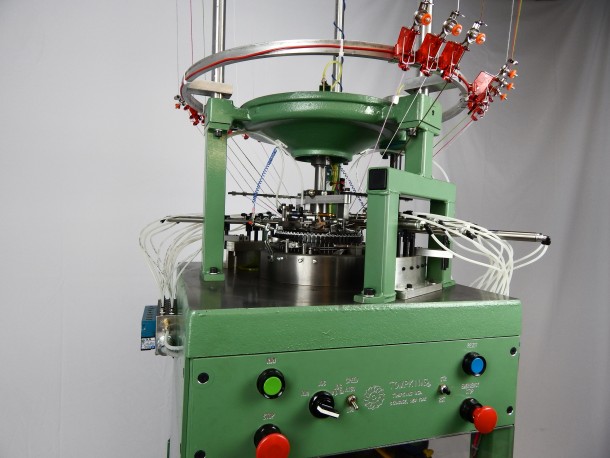

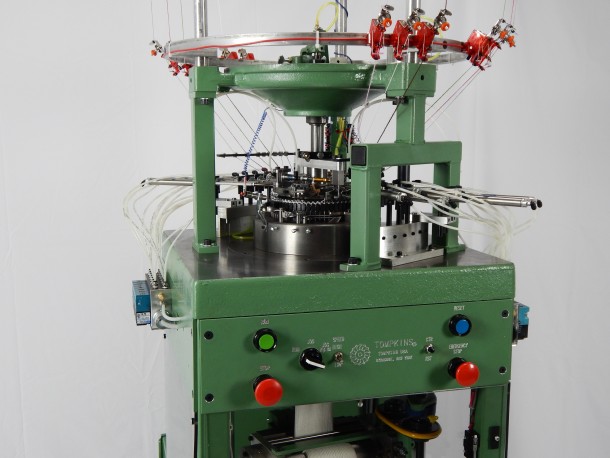

*Photos may not be of model selected and include optional features.
